2019年 12月20日,深圳六碳科技和復旦大學包文中教授團隊合作在 ACS Appl. Electron. Mater. 發(fā)表論文:High-Performance Logic and Memory Devices Based on a Dual-Gated MoS2 Architecture
深圳六碳科技作為作者單位,負責二維材料的制備
Abstract

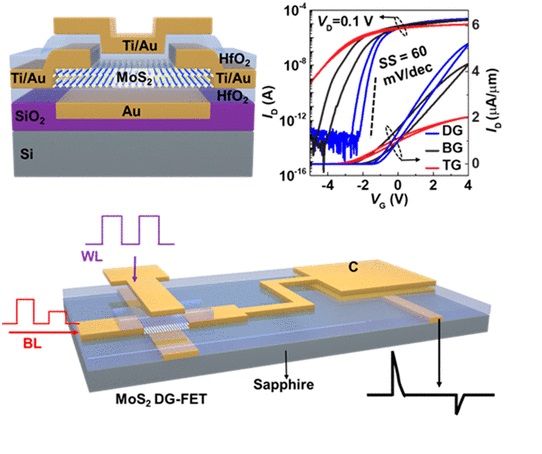

We demonstrate dual-gated (DG) MoS2 field effect transistors (FETs) in which the degraded switching performance of multilayer MoS2 can be compensated by the DG structure. It produces large current density (>100 μA/μm for a monolayer), steep subthreshold swing (SS) (~100 mV/dec for 5 nm thickness), and high on/off current ratio (>107 for 10 nm thickness). Such DG structure not only improves electrostatic control but also provides an extra degree of freedom for manipulating the threshold voltage (VTH) and SS by separately tuning the top and back gate voltages, which are demonstrated in a logic inverter. Dynamic random access memory (DRAM) has a short retention time because of large OFF-state current in the Si MOSFET. Based on our DG MoS2-FETs, a DRAM unit cell with a long retention time of 1260 ms is realized. Large-scale isolated MoS2 DG-FETs based on CVD-synthesized continuous films are also demonstrated, which show potential applications for future wafer-scale digital and low-power electronics.
